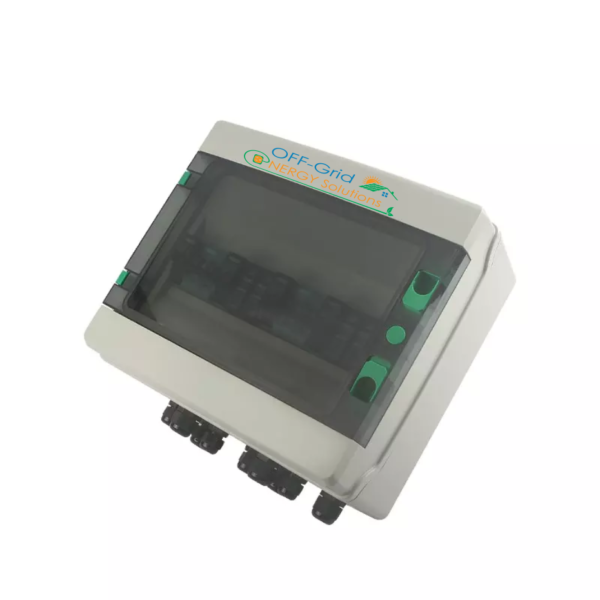

6-1 Solar Panel Combiner Box – 6 circuits to 1 (1 x 100A max output) -OC61001B

 PVC, Weatherproof: IP65,
Technical Specification

• Number of PV Input Strings: 6

• Fused Positive & Negative Inputs
• Number of Fuses: 12
• Max Input Amps: 15A
• Max Input DC Volt: 550V
• Max Current of Breaker: 100A

Lightning Protection

• Pole: 2P
• Nominal Discharge Current: 20KA
• Max Discharge Current: 40KA
• Volt Protection Level: 3800V
